Release Time : Jun-17-2026
In modern power distribution systems, reliability is not only determined by the breaker itself, but also by how well each part of the switchgear works together. The structure of a High Tension Switchgear Panel plays a key role in ensuring safe operation, easy maintenance, and stable energy distribution.

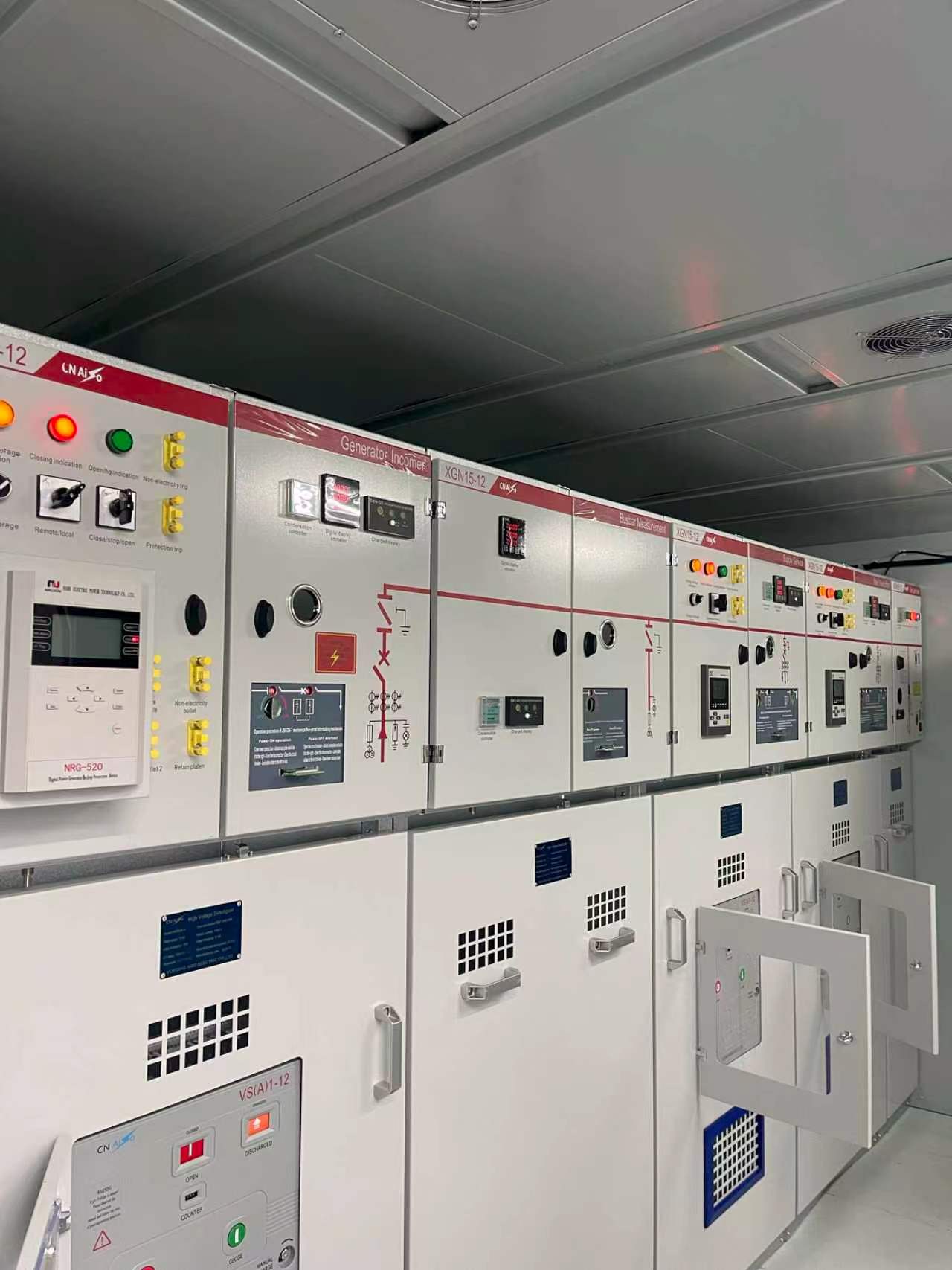

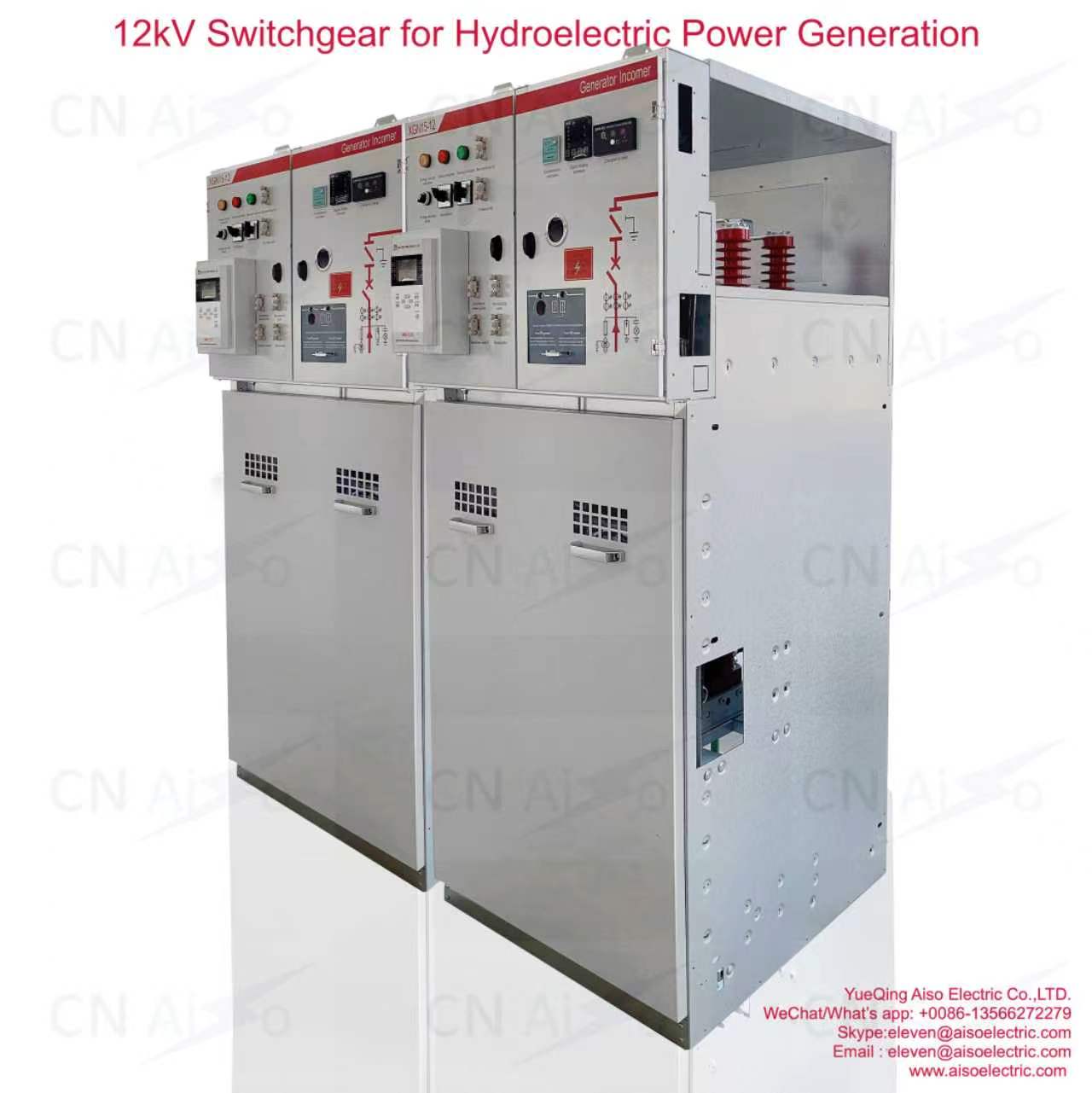

This 12kv Secondary Switchgear is designed with a modular internal layout, combining cable connection systems, busbar arrangement, and protection components into one coordinated structure.
The cable compartment is one of the most practical parts of the entire Switchgear Component system. It is designed to handle both single-core and three-core cable connections using simple, unshielded cable heads.
What makes it more useful in real applications is the extra space inside the cable room. It can accommodate important devices such as:
The structure also includes a removable front frame, making cable installation and maintenance much easier in tight installation environments.
A sealing cover at the bottom and properly sized cable clamps ensure that cables remain securely fixed, improving both safety and stability during long-term operation.
The low-voltage chamber in this High Tension Switchgear Panel is not just a control space—it functions like a compact control center.
Inside the chamber, operators can integrate:
In wider cabinets (such as 750mm units), the design allows two identical low-voltage chambers, giving engineers more flexibility for system configuration.
This 12kv Secondary Switchgear is typically part of a ring main unit (RMU) system, which integrates multiple functional compartments:
Each compartment is separated by steel partitions, ensuring that faults in one section do not affect the others. This structural isolation significantly improves system safety and reliability.
The busbar chamber is located at the top of the cabinet. It connects the main busbars across the entire switchgear lineup, allowing easy expansion for future system upgrades.
The load switch section uses epoxy resin insulation and SF6 gas as the arc-extinguishing medium. Transparent end covers allow operators to visually check the contact position during operation. In some configurations, gas density monitoring devices with alarm functions can also be added for improved safety control.

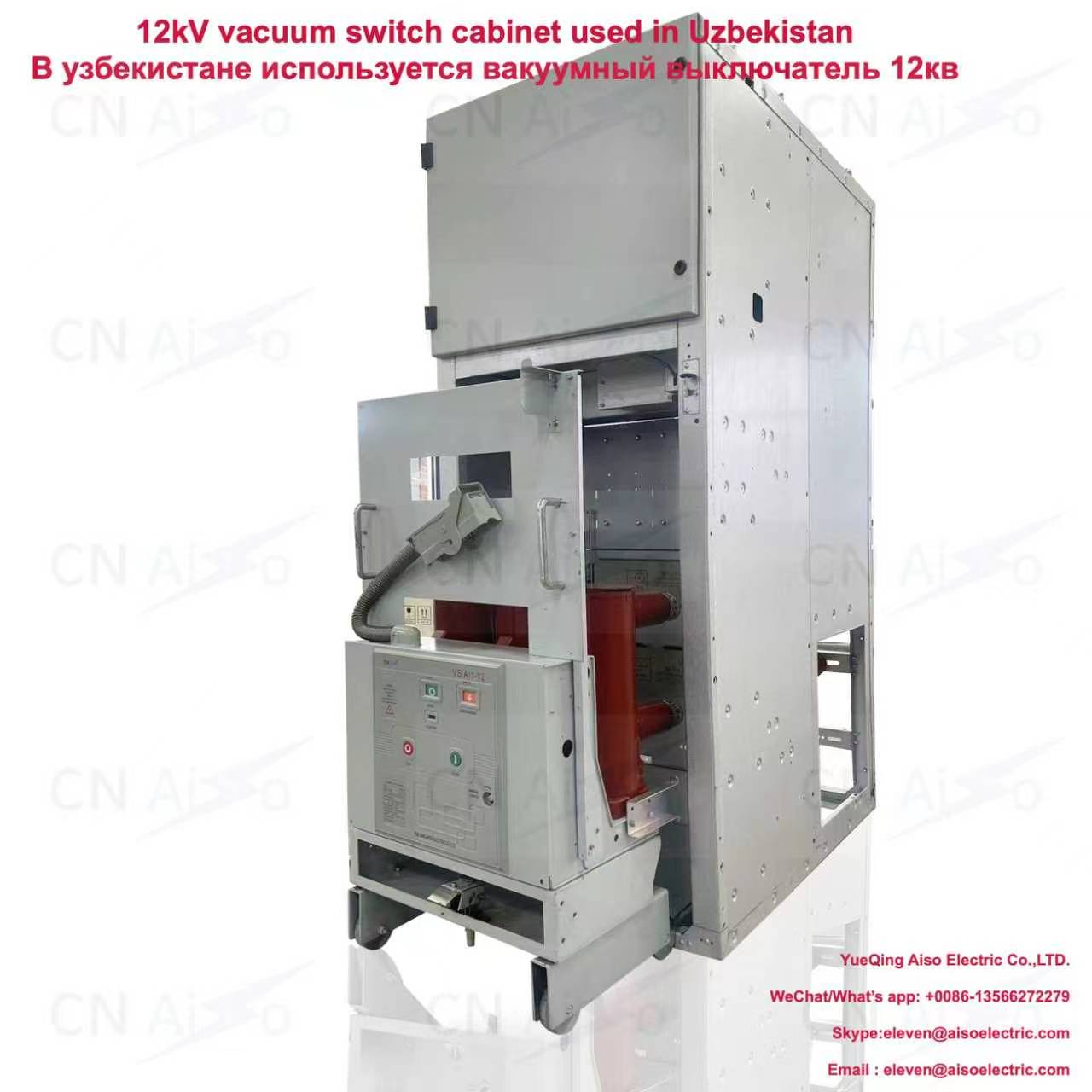

The circuit breaker chamber is located in the middle of the cabinet and can be equipped with either a vacuum circuit breaker or SF6 circuit breaker depending on application requirements.
The vacuum circuit breaker is particularly suitable for systems requiring frequent switching operations. With a spring-operated mechanism and reclosing function, it provides stable performance, long service life, and reliable breaking capacity even under short-circuit conditions.
This High Tension Switchgear Panel and 12kv Secondary Switchgear system is widely used in:
At Yueqing Aiso Electric Co., Ltd., we believe switchgear is not just a collection of components—it is a system that must perform reliably in real operating environments.
Our focus is on practical engineering: stable structure, safe operation, and easy maintenance. Instead of over-designing features that are rarely used, we prioritize what engineers actually need on site—clarity, durability, and reliability.
A well-designed High Tension Switchgear Panel is the foundation of a stable power distribution system. By integrating functional compartments, reliable Switchgear Components, and flexible configuration options, this 12kv Secondary Switchgear provides a practical and dependable solution for modern electrical networks.
