ZW32 Type Miniaturized Outdoor Vacuum Circuit Breaker

DetailPlace of Origin：Zhejiang, ChinaBrand Name：AISO/OEMModel Number：ZW32-12Type：Vacuum, OutdoorPoles Number：3Product:：ZW32 Type Miniaturized Outdoor Vacuum Circuit BreakerRated Voltage：7.2~12kVRated current：630A,1250ARated frequency：50HzMechanical life：10000TimesUses：High voltageWeight：About70KgStandard：GB1984-89Customized：Accept special orderPackaging Details：Standard export wooden case packingPort：Ningbo or Shanghai

Product Description

Applicable place:(Suitable forplaces with high voltage level)

1.Overhead lines.

2.Industrial.

3.Mining enterprises.

4.Power stations.

5.Substations.

This is a new type of on poleswitchgearin vacuum circuit breaker series products in China.

Advantages

1.It has good performance inshort-circuit makingandbreaking.

2.It is characterized byautomatic re-making,stable operationandlong electric life.

3.Under its normal operating conditions and specified technical parameters, it cansatisfy the protection requirements of systems connectedwith the grid in service.

Environmental Conditions

Ambient temperature:- 40°C~+40°C

Relative humidity: ≤95% (daily average) or ≤90% (monthly average)

Altitude: ≤ 2000m

Structure and FunctionMain Technical Parameters

Note: Please contact the factory to confirm the latest parameters

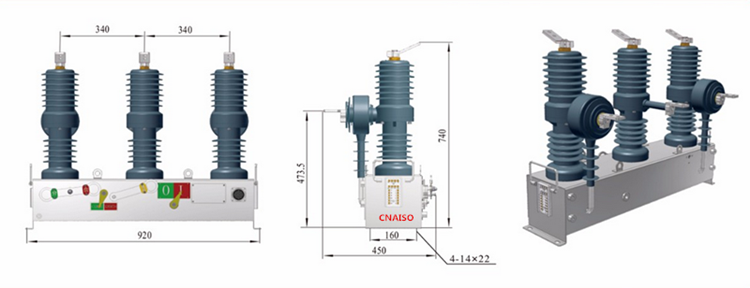

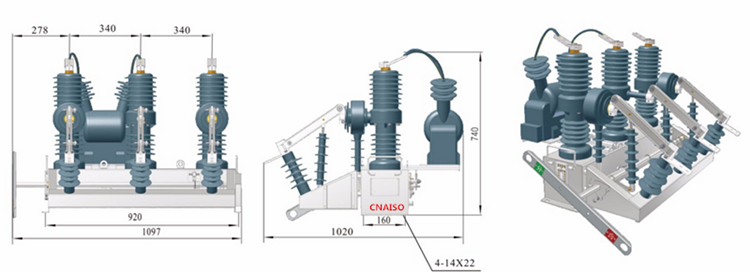

Outline and installation dimension

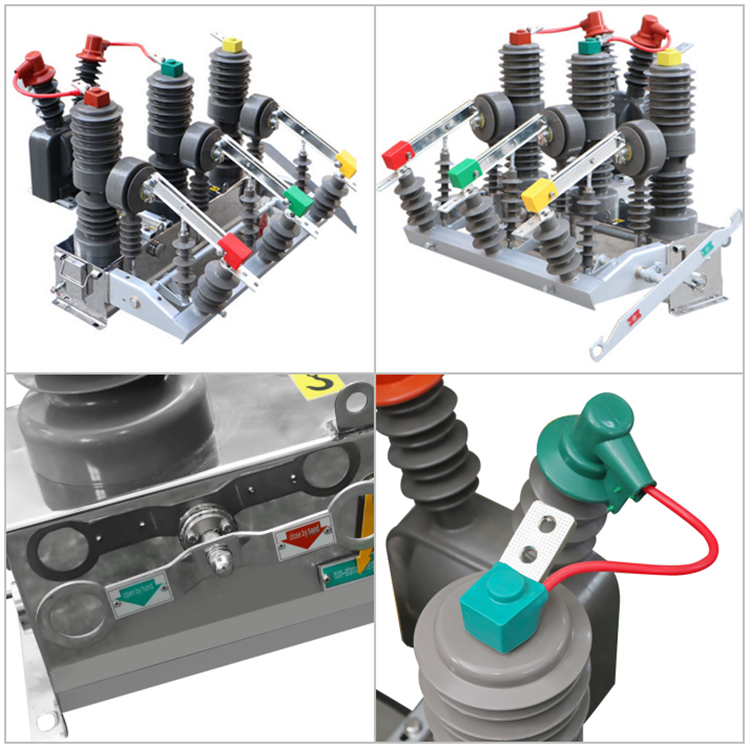

Product picture details(Real product picture, unprocessed)
