24kV Auto Circuit Recloser(ACR) With Zero Sequence And Disconnector

Short Description:

Specification:1420-3000 USD/PIECEUse Parts:1 PIECESupply Ability:10000 PIECEPayment Terms:TT , LC , Others Tags:


Product Detail

Product Tags

Product 24kV Outdoor High Voltage Vacuum Circuit BreakerApplication High VoltageAltitude ≤2000mPlace of Origin Zhejiang, ChinaBrand Name24kV Auto Circuit Recloser(ACR)Type High VoltagePoles Number 3Rated voltage24kVRated current 630A,1250ARated frequency 50HzMechanical life 10000timesCapacitor CertificatioIECWeight About140kgsProcessing customizedYes

Product Description

24kV Auto Circuit Recloser(ACR) With Zero Sequence And Disconnector:

Anew on-pole switchgear of our vacuum circuit breaker series products. Its rated voltage is 24 kV. It applies to places with such voltage level, including overhead lines, industrial and mining enterprises, power stations, substations, etc. Under its normal operating conditions and specified technical parameters, it can satisfy the protection requirements of systems connected with the grid in service. It has good performance in short-circuit making and breaking. It is characterized by automatic re-making, stable operation and long electric life

Advantages

1.It has good performance inshort-circuit makingandbreaking.

2.It is characterized byautomatic re-making,stable operationandlong electric life.

3.Under its normal operating conditions and specified technical parameters, it cansatisfy the protection requirements of systems connectedwith the grid in service.

Environmental Conditions

Ambient temperature:- 40°C~+40°C

Relative humidity: ≤95%or ≤90%

Altitude: ≤ 2000m

Wind pressure:700Pa(equivalent to wind speed 34m/s)

Seismic intensity:8

*No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.

Technical parameters

Description

Unit

Data

Rated voltage kV 24

Frequency

Hz

50/60

Rated current

A

630/1250

Rated short-circuit breaking current

kA

20

Mechanical life

Time

10000

If customers have other special requirements, our company can provide you with the most satisfactory!

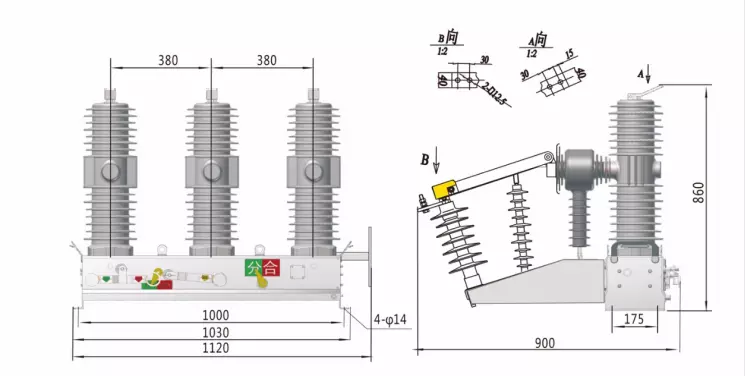

Outline and installation dimension

1608126695255
