Dedicated to strict high-quality management and considerate shopper company, our experienced team associates are normally available to discuss your requirements and ensure full shopper gratification for
Medium Power Transformer,
Electromagnetic Circuit Breaker,
Transformer Input Voltage, Quality is factory's lifestyle , Focus on customers' demand could be the source of corporation survival and advancement, We adhere to honesty and great faith operating attitude, looking ahead on your coming !
8 Year Exporter Lighting Surge Arrester - M Type 800A 3Pole MCCB Moulded Case Circuit Breaker – Aiso Detail:
General
Comply with GB14048.2008 standards;
Rated insulation voltage:800V;
Frame size rated current:63A; 100A; 225A; 400A; 630A; 800A;
High breaking capacity: up to 100kA;
Reasonable design, safe and reliable, samll size, light weight, beautiful appearance;
Accessories everything, quick installation, easy to use, strong applicability.
Main technical parameters
| Model |
Frame size rated current(A) |
Rated current(A) |
Rated ultimate short circuit breaking capacity(kA)400V |
Rated operating short circuit breaking capacity(kA)400v |
Arcing distance(mm) |
Rated impulse withstand voltage Uimp(kV) |
| ASM1-800M/3300 |
800 |
400, 500, 630 |
75 |
50 |
≤100 |
8 |

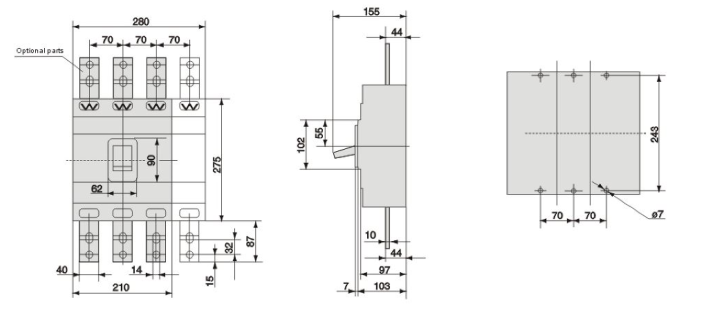

Overall dimension and installation dimension
Product detail pictures:
Related Product Guide:
Always customer-oriented, and it's our ultimate target to be not only the most reliable, trustable and honest supplier, but also the partner for our customers for 8 Year Exporter Lighting Surge Arrester - M Type 800A 3Pole MCCB Moulded Case Circuit Breaker – Aiso, The product will supply to all over the world, such as: Namibia, France, Bogota, Our products are widely sold to Europe, USA, Russia, UK, France, Australia, Middle East, South America, Africa, and Southeast Asia, etc. Our products are highly recognized by our customers from all around the world. And our company is committed to continually improving effectiveness of our management system to maximize customer satisfaction. We sincerely hope to make progress with our customers and create a win-win future together. Welcome to join us for business!
